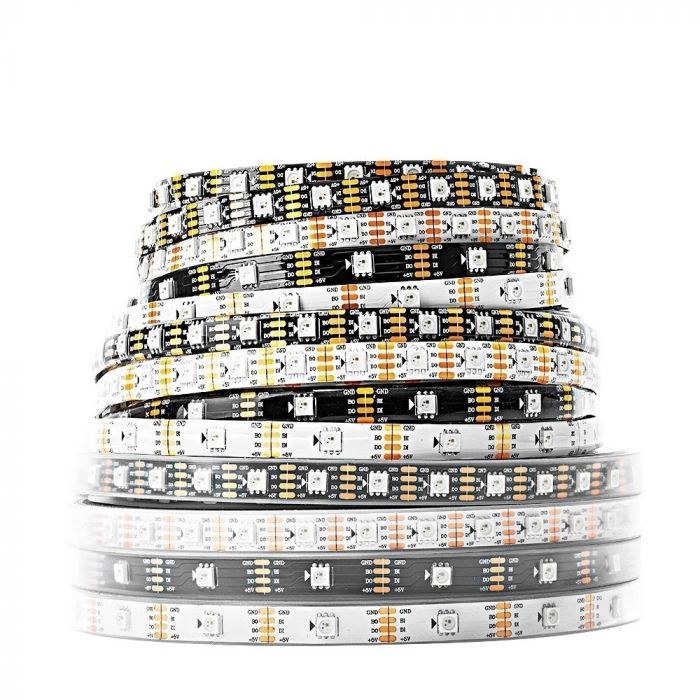

Note:
The price is only Led Strip, Not Included Power Supply or Led Controller!
WS2813 Must Use DC5V Power Supply AND Led Controller to Control!
Every 0.5meter with solder joints, please note!
Pay Attention:
30,60means: 30 Leds/m, 60 Leds/m
IP30 Non-Waterproof / IP65 Waterproof in Silicon Coating / IP67 Waterproof in Silicon Tube
IP30 IP65 with 3M adhensive tape on the back (IP67 without 3M adhensive)
Each strip with one free male connector for, The length of the strip as you choose
Main feature:
One pixel damaged will not affect the other LEDs'working, Dual signal wires version, Signal can jump to transfer
FEATURES:
LED Light Source: WS2813 LEDs ( Same Protocol as WS2811S But With Dual-Signal Wires,So Can Be Controlled by the Same
WS2811/ws2812 Controllers)
Input Voltage: DC 5V
Power: 30 Leds/M --- 9 Watt/Meter / 60 Leds/M --- 18 Watt/Meter
LED Resource: WS2813 led (5050 SMD RGB LED with built-in improved version of ws2811 ic)
LED: Each LED is separately controlled
IC Type: Improved version ws2813 IC(built inside the 5050 smd rgb led)
Of IC: (1 IC drives 1 led chip)
Pixels: 30Leds/60Leds
Pitch: 16.6mm(1000/64)
Grey Scale: 256
Colors: Full color RGB, dream color changing
Bits/Color: 8-Bits/Color
FPC Color: BLACK / White
FPC Width: 30 Leds/M --- 10 MM / 60 Leds/M --- 10 MM
Protection Rate: IP30 Non-Waterproof / IP65 Waterproof in Silicon Coating / IP67 Waterproof in Silicon Tube
Cuttable: Every LED is cuttable
Package: In anti-static bag, IP30 IP65 with 3M adhensive tape on the back (IP67 without 3M adhensive), each strip with one
free male connector for connector
Working Temperature: -40 - 70 °C
Storage Temperature: -50 - 80 °C
Source Life: 50,000 hours
Connector: 4PIN connector terminal pair (Red: 5V power, Green: Date line, Blue: standby date line, Black: GND)
Recommand controllers: T-1000s,T-8000A;T-100K;T-200K;T-300K
Package Included:
1 Roll of Led Strip
CE and RoHS approved
