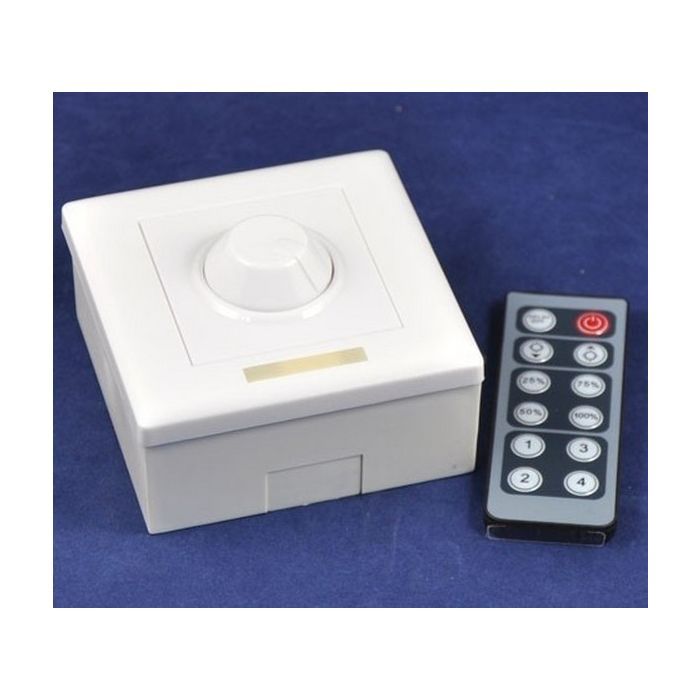

Wall Mounted 12-Key RF Remote Control LED Dimmer is a dedicated intelligent LED lighting dimmer controls,
adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, you can manually adjust the brightness stepless.
IR wireless remote control can also be used to remote dimming; Standards for commercial or home a low 86-type switch socket box installation,
LED Dimmer switches can be installed to meet the light needs of commercial or home lighting in the different time and different environments,
to extend the LED life span, energy saving; power and low-power LED lighting can be dimmin. Is used to control a variety of LED lamps as the light source,
for instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; With competitive price, easy wiring, simple to use etc.;
Through the infrared remote control and dimmers on the knob to adjust brightness; Gray level 255; with custom features, delay shutdown function and a fixed grayscale output.
This DC 12V to DC 24V Dimmer Switch can be used with any of our Single Colour LED Strip Lights.
You won't need a dimmable driver because the switch operates at DC12V to DC 24V and installs between the power supply and the strip lights.
The dimmer switch is suitable for all dimmable loads and comes with a wall plate and remote control. As well as standard dimming,
the remote offers a variety of functions, including "instant switch" dimmer settings and the option to memorize lighting preferences.
Application:
Applies with DC12V to DC 24V contant voltage LED lights.
Working temperature: -20~60 °
Supply voltage: DC12V~24V
Output: 1 channels
Controller dimension: L87*W87*H53mm
Remote dimension: L86*W33*H7mm
Packing size: L160*W95*H51mm
Net weight: 145g
Gross weight: 180g
Static power consumption: <1 W
Output current: <8 A
Output power: DC12V: <96W, DC 24V: <192W
Package Included:
1 Piece of LED Dimmer
1 Piece of IR Remote control
1 Piece of User Manual
Direction for use:
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. When operation, the remote control facing the infrared receiver, ensure that there are no obstructions between remote controller and receiver;
When dimmer receives an effective signal from the infrared remote control, the red light on the upside flickers; There are two methods in Dimming:
A. Infrared remote control adjustment mode; the key features as follow(range as the keys of remote controller)
B. Regulation resistance adjusts modes:
Rotary knob clockwise to increase brightness; knob counterclockwise rotation will decrease the brightness.
CE and RoHS approved
