TC420/TC421
led controller is an upper computer in the programmable time controller to make the load output
change over time, the customer may customize schedule mode they want through the upper PC.
Then through the USB port to download required schedule to the controller.The upper PC in
addition to the function of editing schedule mode ,it also can be setup time for the controller
because of synchronous clock function of upper host .If user want to see the schedule mode effect
after editing , they can use fast sowing function of upper . Because there is no delete function
of the upper host ,so the mode name display space will come into blank as long as you execute delete .
This controller can control load of led changing effect no more than five channels .And it can be used
in the occasion of the plant lights, light box advertising, the stage, home decoration, etc.
TC421
the customer may customize schedule mode they want through the upper PC or APP Client.
You can set the mode effect for a certain period of time, can edit multiple mode and delete redundant mode,
can be directly preview mode
Specification:
TC420:
Model Number : TC420
Working temperature:-20-60°C
Supply voltage:DC12-24V
Output:5 channels(five COMS drain-open output)
Max load current:4A each color
Color:Black
Connection mode: common anode
Gross Weight:205g
External dimension:120x69x24mm
TC421 WiFi:
Model Number : TC421
Working temperature: -20-60°C
Supply voltage: DC12-24V
Static power consumption: < 0.5W
Net weight: 200g
Gross weight: 360g
External dimension: 150MM*78.5MM*26MM
Packing size: 185MM*180MM*54.8MM
Output: 5 channels
Maximum output current: 20A

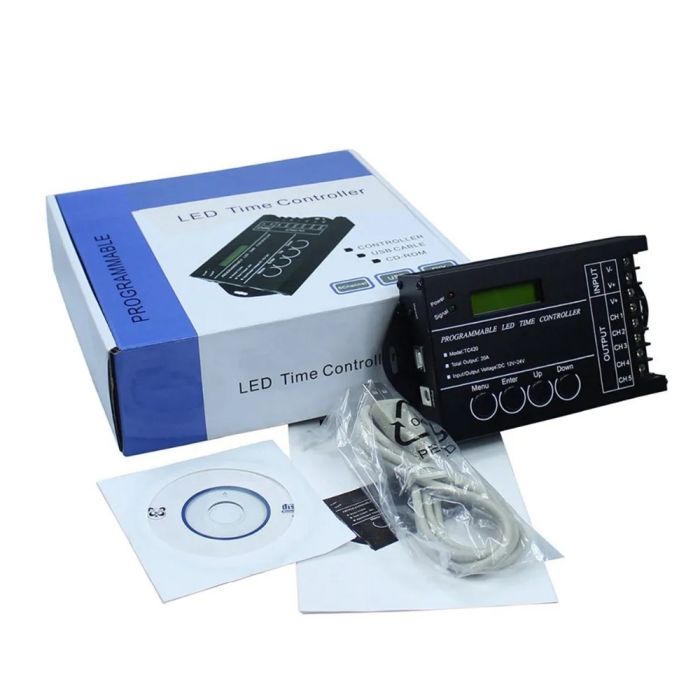

Package including:
1 X LED time controller
1 X User manual
1 X USB wire
CE and RoHS approved
