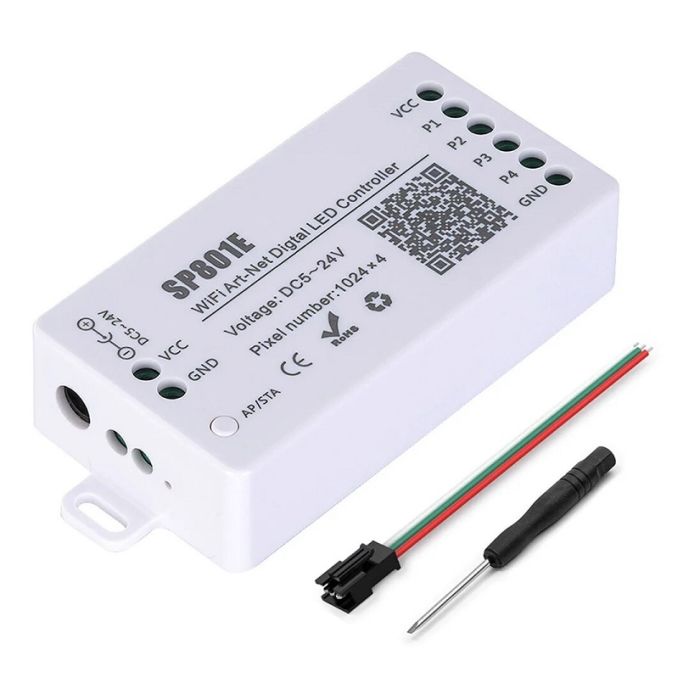

SP801E WiFi Art-Net LED Controller for Matrix Panel Module Light Strip

£16.57
In stock
SKU
SP801E WiFi Art-Net LED Controller for Matrix Panel
SP801E Wifi Art-Net Magic LED Controller LED Matrix Panel Module WS2812B WS2811 Light Strip Wireless Control iOS Android DC5-24V is very good choice for LED Lighting projects, For big order or customized items of LED Strip, LED Controller, LED Power Supply and Other LED products, Pls feel free to contact service@agouk.com

We supply high quality products to the United Kingdom and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on Agouk.com

SP801E WiFi Art-Net LED Controller for Matrix Panel Module Light Strip

Features:
1. APP controlled via WiFi, compatible with multiple Art-Net computer software ;
2. BluFi configuration using dual mode chip(WIFI&BT);
3. Support AP mode and STA mode;
4. Two layout setting method: regular rectangle layout setting and importing DXF files ;
5. Support two layers overlay, built-in multiple types of effect layers: text layer, music effect layer...;
6. The effect layers support a variety of custom parameters: direction, width, color, length, shape...;
7. Real-time preview, support recording the current scene to the controller storage;
8. Support change device name ,reorder the RGB order, and OTA update.

Specifications:
Working temperature : -20℃~60℃;
Working Voltage : DC5V~24V;
Working Current : 25mA~130mA;
Flash Capacity : 128M;
Output signal: 4-port TTL signals;
Maximum pixel number : 1024 / port;
LED driver IC: Normal one-wire RZ code LED driver IC.

SP801E_Wifi_Art_Net_0122_1

SP801E_Wifi_Art_Net_0122_2

SP801E_Wifi_Art_Net_0122_3

SP801E_Wifi_Art_Net_0122_4

SP801E_Wifi_Art_Net_0122_5

SP801E_Wifi_Art_Net_0122_6

SP801E_Wifi_Art_Net_0122_7

SP801E_Wifi_Art_Net_0122_8

SP801E_Wifi_Art_Net_0122_9

SP801E_Wifi_Art_Net_0122_10

SP801E WiFi Art-Net LED Controller.

App control: ( Both IOS version and Android OS version are available)
1, Requires IOS version 10.0 or later, requires Android OS version 4.4 or later;
2, Search “BanlanX” on the App Store or Google Play or scan this QR code to download and install the App.

Button Functions:
1, Click on the button: Switch AP/STA mode;
2, Press and hold the button: Enter the BluFi network configuration mode.

LED Indicator Functions:
1, Blue static: AP(Access Point) mode;
2, Green static: STA(Station) mode;
3, Green flashing: BluFi configuration mode.

AP (Access Point) working modes:
Controller and Phone connect directly, controller works as an access point.
Go to your phone Settings page, connect the controller(SSID like SP801E_XXX, the default password is 12345678).
Open the BanlanX App ,Click “+” button to configure the new SP801E controller,then the controller will be showed on the device list;

STA (Station) working modes:
Controller and phone are in one same WiFi network, in this network, users can operate the controller.
There are two ways to configure the controller into the local WiFi network.
1), Connect your phone or tablet to a 2.4G Wi-Fi network. ( Doesn't support 5.0G Wi-Fi network ) .
2), Open the App and click“+” button to scan devices, click Add manually and select SP801E controller in the device category.
3), Input your Wi-Fi network password.
4), BluFi config and AP config. (Note: BluFi config: Press and hold device’s “STA/AP” button until the green led indicator flashes,
then the device enters the network configuration state, click next and selcet the device you want to add. AP config: Switching
the device to the AP mode, click next and connect your phone’s WIFI to the named like SP801E_XXX hotspot, password is 12345678,and return to the APP.)
5), Pressing next step to wait for the configure processing finish.
6), After the configuration finished, the LED indicator will turn into solid green, the controller will be showed on the device list.

Note:
1, Users can get more help and detailed information about SP801E on the Help&FAQ page.
2, .Please keep your phone, the Wi-Fi router and the controller closer together to maintain a better signal connection during configuration.

CE and RoHS approved
