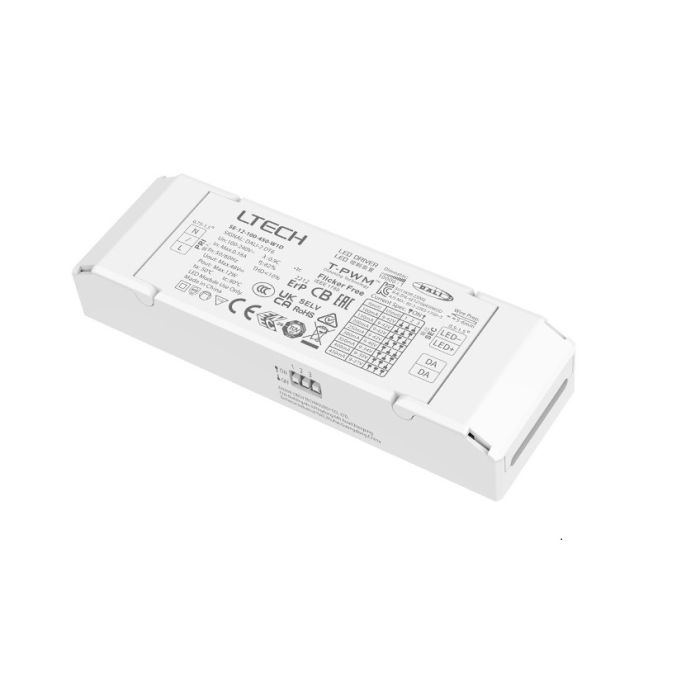

SE-12-100-450-W1D Constant Current DALI-2 DT6 LED Driver Ltech Controller
Reliable Quality with 5 years warranty, Genuine Version, Not Copycat
Direct From Factory, Good Price
Small size and light weight. The clamshell design and screwless type for strain-relief.
The clamshell design and screwless type for strain-relief.
The design of dismountable end cap allows you to adjust the length of housing depending on your needs.
Multiple current levels and wide voltage range.
Suitable for different power of LEDs.
Comply with no-load power consumption of the EU’s ErP Directive, standby power consumption < 0.5W.
With soft-on and fade-in dimming function, enhancing your visual comfort.
T-PWMTMdimming technology allows continuous and flicker-freeimages under high-speed photography.
The whole dimming process is flicker-free with high frequency exemption level. Dimming from 0~100%, down to 0.1%.
DALI bus standard IEC62386-101, 102, 207.
DALI dimming curves are available in linear and logarithmic curve.
The secure and reliable design for signal isolation.
Innovative thermal management technology intelligently protects the life of the LED driver.
Overheat, over voltage , overload, short circuit protection and automatic recovery.
Suitable for ClassI/II/III indoor light fixtures.
Up to 50,000-hour life time.
5-year warranty (Rubycon capacitor).
Rubycon capacitor
Dimming Interface: DALI DT6
Input Voltage: 100-240Vac
Power Factor: PF>0.9C/230Vac , at full load PF>0.95C/115Vac , at full load
Efficiency: >82%@450mA
Fluctuation Level: No visible flicker/High frequency exemption level
Output Voltage: 9-42Vdc
Output Current: 100-450mA
Output Power: 0.9W-12W
Dimming Range: 0~100%, down to 0.01%
Certification: CCC,TUV,CB,RCM,CE,KC,UKCA,BIS,EAC,ENEC,ROHS
Warranty: 5 years
Sec. output:
Pout(Max.) Vout(DC) Constant(DC)
0.9-4.2W 9-42V 100mA
1.35-6.3W 9-42V 150mA
1.8-8.4W 9-42V 200mA
2.25-10.5W 9-42V 250mA
2.7-12W 9-40V 300mA
3.15-11.9W 9-34V 350mA
3.6-12W 9-30V 400mA
4.05-12.15W 9-27V 450mA
Package Included:
1 Piece of Ltech LED Driver Controller
Reliable Top Quality with 5 Years Warranty
CE and RoHS approved
