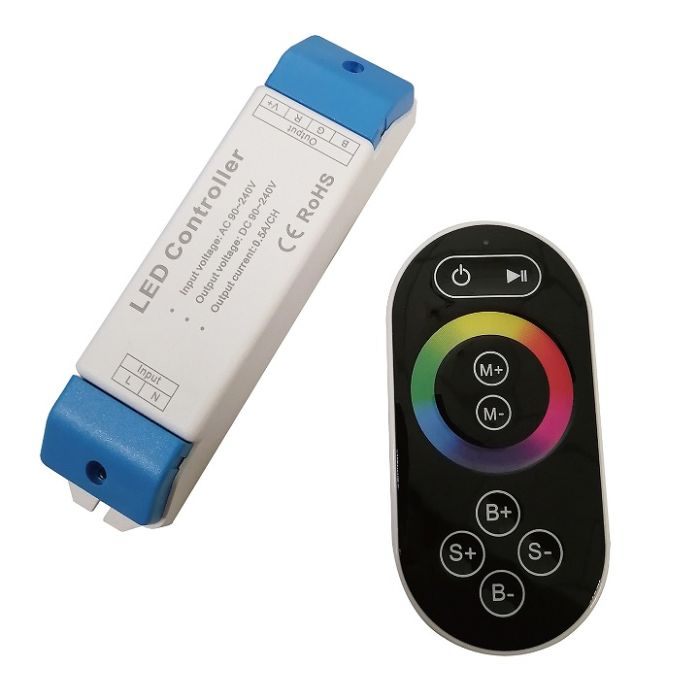

RF701 Leynew Led Controller Wireless high-voltage RGB Decoder Dimmer Control
Wireless high-voltage RGB Controller RF701
Summarization
This product is a novel high-voltage plastic casing controller developed by our company,
plastic casing is safe and beautiful in appearance. Adopting advanced touch design,
can flexibly control controller, realize multistage touch dimmer. Touch remote has good
performance, beautiful, fashion, easy to use. This product suit for high-voltage lamp strip
on every occasions.
Main feature
Touch-button is easy to operate and beautiful.
Touch-key count up to 64, up to 64 kinds of mode function, small volume , more key function.
Easy to use, have color pulley touch screen, all sorts of design and color mode at a glance, can a
single point also can continuous touch to realize color mode select, users can speedily choose the needed color,
and the static and dynamic mode can change freely.
Auto dormancy function, the remote control is without buttons state more than 20 seconds, remote will automatic
enter the standby state, realize save electricity, extending battery life.
Technical Parameters
Controller
working temperature: -20-60 ℃
supply voltage: AC90-240V
output voltage: DC90-240V
output: three N-MOS drain open-circuit output
connection mode: common anode
static power consumption: <1W
output current: <=0.5A ( each channel )
output power: <330W
external dimension: L151 Χ W40Χ H30mm
packing size: L170 Χ W60 Χ H60 mm
net weight: 97g
gross weight: 126.7g
Touch remote
working temperature: -20-60℃
power supply mode: AAA*3 battery
supply voltage: 4.5V
static power consumption: 0.015mW
standby current: 3uA
work current: 200uA
emission current: 10mA
remote distance: 20m
standby time: 3 months
Package Included:
1 Piece of RF701 Leynew Led Controller Wireless high-voltage RGB Decoder Dimmer Control
CE and RoHS approved
