The human body is an infrared detection sensor switch controller, the use of infrared detection control the load of the switch.
Users according to actual needs, the human body sensors installed in the appropriate environment. And it is 1-10 minutes (adjustable)
Specification:
Working temperature: -20-60 ℃
Working voltage: DC12/24V
Output voltage: DC12/24V
Output: 1 channel
Sensing distance: 5 ~ 8 Meters.
Ham should angle: 60 degrees.
Output current: <6A
Delay time: 1-10min (adjustable)
External dimension: L76 Χ W35 Χ H34 mm
Gross weight: 50g
Package included:

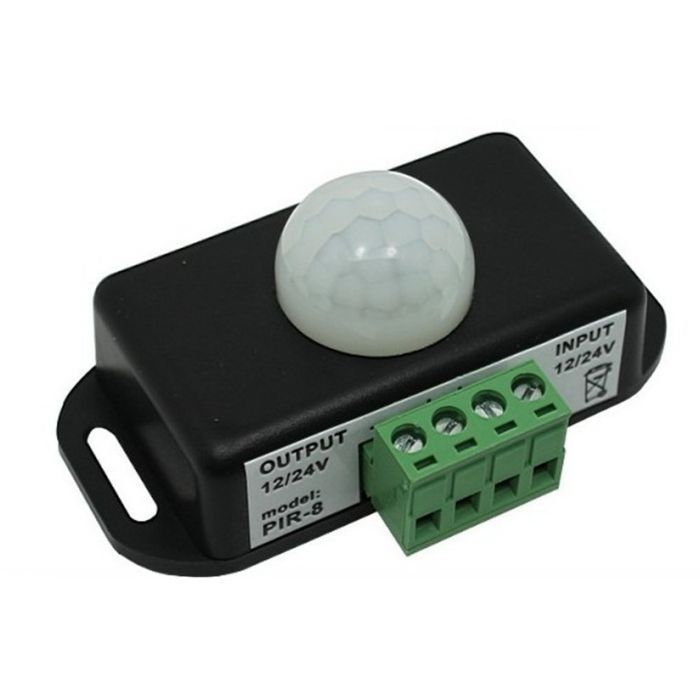

1 Piece of Motion Detection Sensor Switch LED Dimmer Time Adjustable Controller
1 Pieces of User's Manual
Direction for Use
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between
connecting wire before you turn on the power;
2. There is a time setting knob on the back of the controller, rotate the knob, you can set the delay time of human body induction switch,
when detecting someone, it lights up the light, and after the time of people leaving reaches the set delay time, the light will be turn off automatically.
3. The controller signal output line and input line should be connected correctly.
CE and RoHS approved
