DMX-SPI signal decoder is to convert the DMX512 digital signal into SPI(TTL) digital signal. It can work on the DMX console
to control the LED lights with compatible driving ICs. DMX console can control every channel of the LED Lights, realizing 0-100%
dimming and various changing effect.
Our DMX decoder can control LED lights based on following driving ICs:
LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909,
UCS1912, UCS2903, TLS3001, TLS3002, WS2801, WS2803, WS2811, P9813,WS2812B IC etc.
The grey scales of DMX decoder depends on the driving IC, the above driving ICs are with a built-in grey scale processor and
occupy 70-80% of LED digital lighting market, use our DMX-SPI decoder can simply turn normal LED digital light to DMX512
LED light with international standard communication protocol, which is easy to promote in the international market.

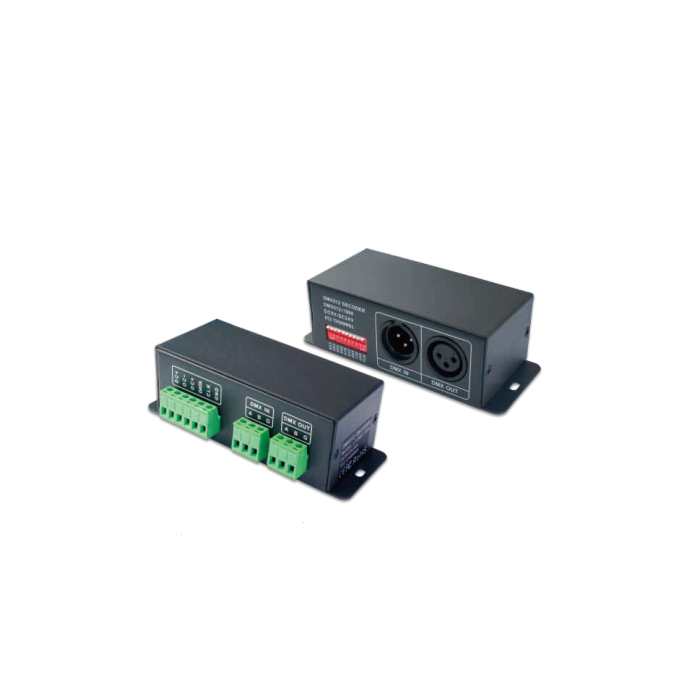

LT-DMX-1809 DMX Decoder
Input voltage
DC5V~DC24V
Input signal
DMX512
Output signal
compatible with the driving IC such as TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811, WS2812B
Decoder channels
512 DMX CH/unit
Grey Scale
256 levels/CH (8bit/CH)
DMX512 socket:
XLR-3, Green terminal
Dimming range
0~100%
working temperature
-30~65
Dimension
L125*W52*H40mm
Package Size
L135*W70*H50mm
Weight (G.W)
300g
CE and RoHS approved
