DMX-PWM DMX Decoder
DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to
、CC/CV PWM signal to drive LED, which controlled by DMX512 console, realize 0-100% brightness or various changing effect.
And can control single color, dupi-color, RGB, RGBY, RGBW, RGBA LED lights
Have excellent performance:
16-bit dimming curve.
Frame rate is as high as 850 frames per second.
Built-in protection circuit of resistance to lightning stroke and ESD static electricity.

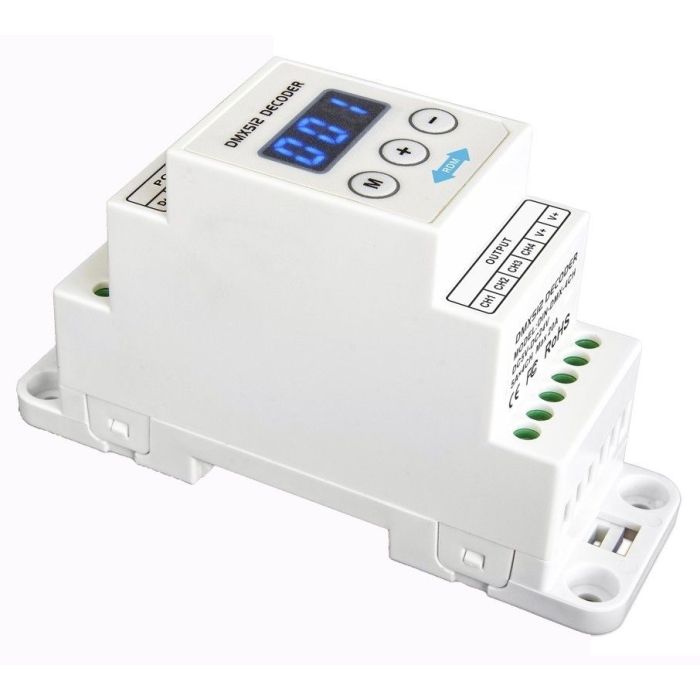

DIN-DMX-4CH 4CH CV DMX Decoder
Input signal RDM, DMX512 (8bit/16bit)
Input voltage DC5V~DC24V
Max load current 4A*4CH Max 16A
Max output power 80W/192W/384W/(5V/12V/24V)
Dimming range 0~100%
Working temperature -30~55
Dimension L112*W35*H67(mm)
Package Size L114*W37*H70(mm)
Weight (G.W) 120g
CE and RoHS approved
