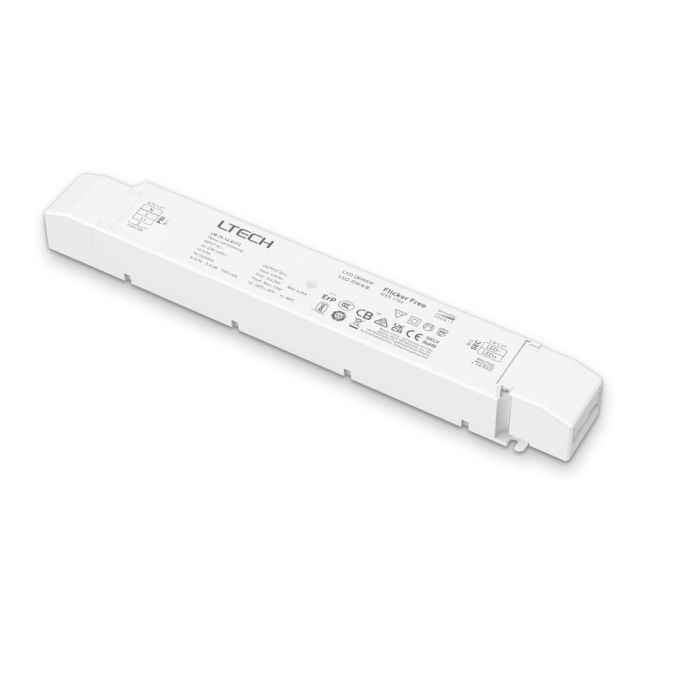

LM-75-12-G1T2 LM-75-24-G1T2 Constant Voltage Ltech Triac LED Controller Driver

£25.94
In stock
SKU
Constant Voltage Ltech Triac LED Controller Driver
  • Buy 50 for £24.64 each and save 5%

For more LTECH Triac Controller Driver, pls check here: https://www.agouk.com/ltech-controller/ltech-triac-controller-driver.html

If you need COB Led Strip, pls check here: https://www.agouk.com/led-strip-lights/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agouk.com/milight-lights.html

If you need LETCH LED Controller, pls check here: https://www.agouk.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.agouk.com/mean-well-power-supply.html

If you need Power Supply, pls check here: https://www.agouk.com/power-supply-power-adapter.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on agouk.com

LM-75-12-G1T2 LM-75-24-G1T2 Constant Voltage Ltech Triac LED Controller Driver

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

LM-75-24-G1T2

Triac/ELV Push DIM, PWM digital dimming

Flicker-free

IEEE 1789

High frequency exemption level

Dimmable Maximum 0.1%-100%, 0.1% dimming dept

Rubycon capacitor

Dimming Interface: Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.

Input Voltage: 220-240Vac

Power Factor:  PF>0.98/230Vac , at full load

Efficiency: 88%

Fluctuation Level: High frequency exemption level.

Output Voltage:    24Vdc

Output Current:    Max. 3.125A

Output Power:    0~75W

Dimming Range:    0~100%, dimming depth: Max. 0.1%

Certification:    CCC,BIS,TUV,CE,KC,RCM,CB,EAC,UKCA,ROHS,ERP

Warranty:    5 years

LM-75-12-G1T2

Triac/ELV Push DIM, PWM digital dimming

Flicker-free

IEEE 1789

High frequency exemption level

Dimmable Maximum 0.1%-100%, 0.1% dimming dept

Rubycon capacitor

Dimming Interface: Leading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.

Input Voltage: 220-240Vac

Power Factor: PF>0.98/230Vac , at full load

Efficiency: 87%

Fluctuation Level: High frequency exemption level.

Output Voltage:    12Vdc

Output Current:    Max. 6.25A

Output Power: 0~75W

Dimming Range: 0~100%, dimming depth: Max. 0.1%

Certification: CCC,BIS,TUV,CE,KC,RCM,CB,EAC,UKCA,ROHS,ERP

Warranty: 5 years

Package Included:

1 Piece of LM-75-12-G1T2 LM-75-24-G1T2 Constant Voltage Ltech Triac LED Controller Driver

Reliable Top Quality with 5 Years Warranty

CE and RoHS approved
