LM-150-24-G1A2 LM-150-12-G1A2 CV LED Driver Dimming Ltech Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

Dimming interface: 0-10V(1-10V/10V PWM/RX), Push DIM

Dimming range from 0-100%, LED start at 0.1% possible.

With soft-on and fade in function, visual more comfortable.

Automatic recognition of 0-10V, 1-10V input signal.

0-100% flicker-free, High frequency exemption level.

High efficient driver: efficiency 93%, PF>0.98, THD<6%.

Ultra-low consumption of 0-10V ports: < 0.05mA.

Dimming interface with photoelectric isolation, in line with the latest safety standards, more safe and reliable.

In line with the EU energy efficiency ERP directive, standby power consumption < 0.5W

Innovative thermal management technology, intelligent power life protection.

Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.

Fully-protected plastic housing with design of dismountable end cover.

Suitable for internal lights application for I/II/III

Up to 50000-hour life time.

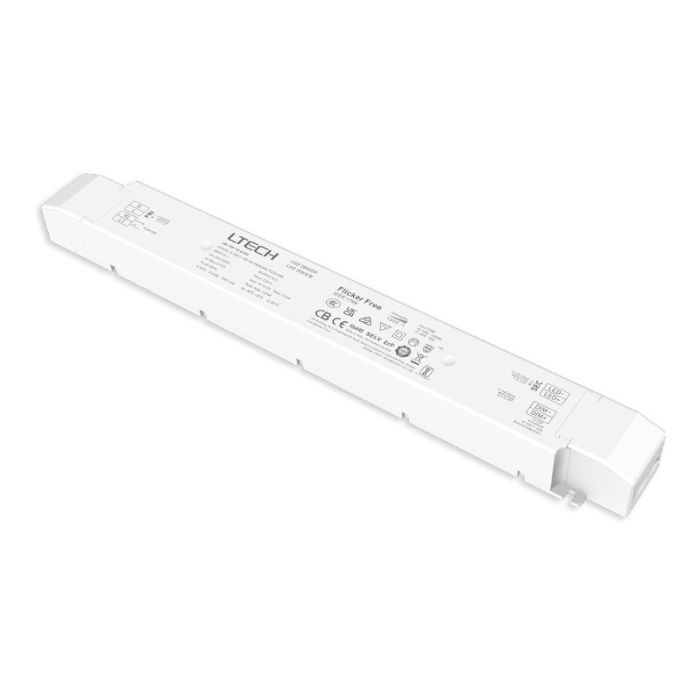

LM-150-12-G1A2
Rubycon capacitor

Dimming Interface:    0-10V(1-10V/10V PWM/RX), Push DIM

Input Voltage:    220-240Vac 200-280Vdc

Power Factor:     PF>0.98/230Vac, at full load

Efficiency:    92%

Fluctuation Level:    High frequency exemption level.

Output Voltage:    12Vdc

Output Current:    Max. 12.5A

Output Power:    0~150W

Dimming Range:    0~100%, dimming depth: Max. 0.1%

Certification:    CCC,EAC,KC,TUV,RCM,CB,CE,ROHS,BIS,ERP,UKCA

Warranty:    5 years


LM-150-24-G1A2
Rubycon capacitor

Dimming Interface:    0-10V(1-10V/10V PWM/RX), Push DIM

Input Voltage:    220-240Vac 200-280Vdc

Power Factor:     PF>0.98/230Vac, at full load

Efficiency:    93%
Fluctuation Level:    High frequency exemption level.

Output Voltage:    24Vdc

Output Current:    Max. 6.25A

Output Power:    0~150W

Dimming Range:    0~100%, dimming depth: Max. 0.1%

Certification:    CCC,EAC,KC,TUV,RCM,CB,CE,BIS,ERP,ROHS,UKCA

Warranty:    5 years

Package Included:

1 Piece of LM-150-24-G1A2/LM-150-12-G1A2 CV LED Driver Dimming Ltech Controller

Reliable Top Quality with 5 Years Warranty

CE and RoHS approved
