Leynew TC421 WIFI Time Led Controller DC 12 24V Control Decoder

Be the first to review this product

£21.61

In stock

SKU

Leynew TC421 WIFI Time Led Controller DC 12 24V Control

For more Leynew LED Controller, pls check here: https://www.agouk.com/leynew-led-controller.html

If you need COB Led Strip, pls check here: https://www.agouk.com/led-strip-lights/cob-led-strip.html

If you need Milight Products, pls check here: https://www.agouk.com/milight-lights.html

If you need LETCH LED Controller, pls check here: https://www.agouk.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.agouk.com/mean-well-power-supply.html

If you need Power Supply, pls check here: https://www.agouk.com/power-supply-power-adapter.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number, easy and safe ordering with PayPal and Credit Card. We daily update new products onto our website, enjoy more quality LED lighting products with the latest technology on agouk.com

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

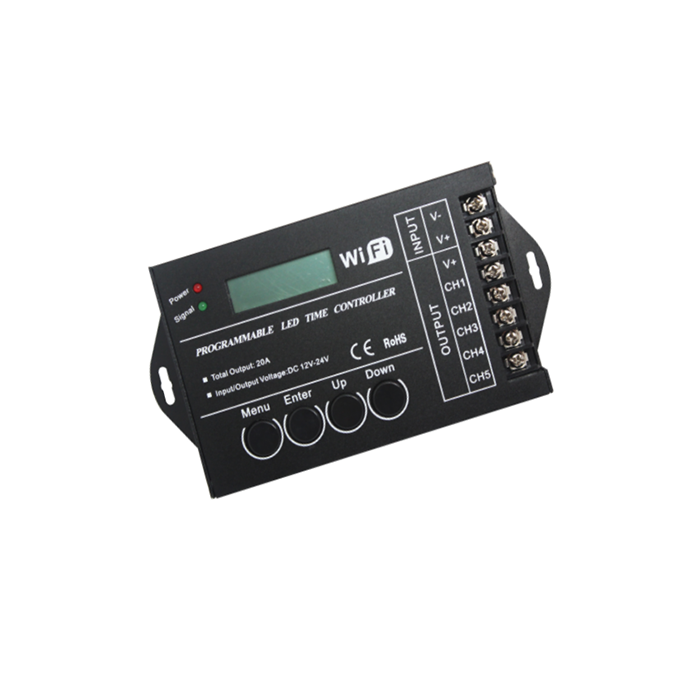

Leynew TC421 WIFI Time Led Controller DC 12 24V Control Decoder

There is an upper computer in the programmable time controller to make the load output change over time, the customer may customize schedule

mode they want through the upper PC or APP client. Then through the USB port or wifi to download required schedule to the controller.The upper PC

and Mobile phone APP to the client in addition to the function of editing schedule mode ,it also can be setup time for the controller because of synchronous

clock function of upper host .If user want to see the schedule mode effect after editing , they can use fast sowing function of upper . Because there is no delete

function of the upper host ,so the mode name display space will come into blank as long as you execute delete .This controller can control load of led changing effect no

more than five channels .And it can be used in the occasion of the plant lights, light box advertising, the stage, home decoration, etc.

Technical Parameters

Working temperature :-20-60℃

Supply voltage : DC12-24V

static power :< 1W

net weight : 220g

gross Weight : 360g

External dimension : 150MM*78.5MM*26MM

Packing dimension : 185MM*180MM*54.8MM

Output: 5 channels

Max load current : 20A

Output: Five CMOS drain- open output

Connecting Mode: Common anode

The controller output frequency: 600 Hz

Package Included:

1 Piece of Leynew TC421 WIFI Time Led Controller DC 12 24V Control Decoder

Common_Controller_TC421_1

Common_Controller_TC421_2

Common_Controller_TC421_3

Common_Controller_TC421_4

Common_Controller_TC421_5

Common_Controller_TC421_6

Common_Controller_TC421_7

Common_Controller_TC421_8

Common_Controller_TC421_9

CE and RoHS approved
