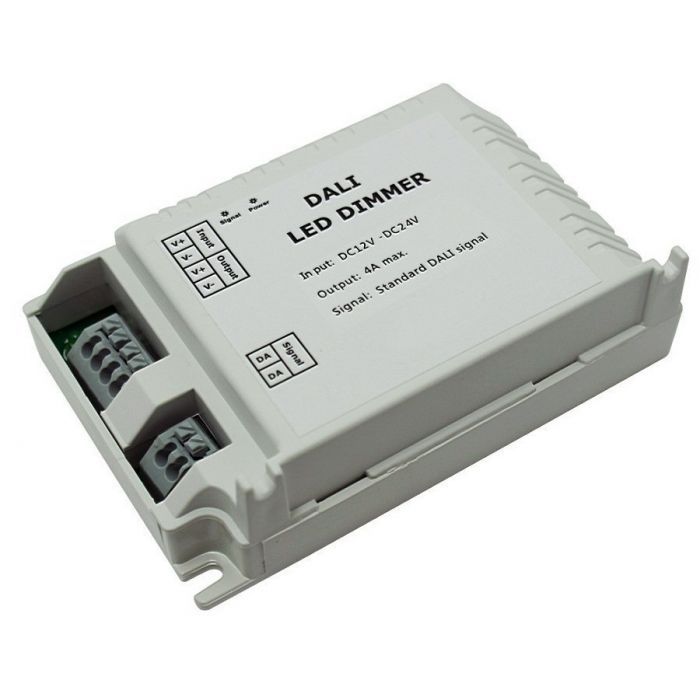

LED Lighting DALI Control Dimmer DC 12V 24V is widely used for DALI projects. LED DALI controller,
DALI (Digital Addressable Lighting Interface) is an international standard, popular lighting control protocol,
which adopts Manchester codes of digital transmission, with a whole grouping dimming, dimming addressing
inquiries, and other powerful status lighting dimming function. Compared with the 0-10V analogue dimming,
it’s more precise dimming, addressable, stable, focus control, easy installation and so on.
This product adopts a standard DALI dimming signal to digital LED dimming using standard IEC60929. LED
dimming with the traditional way of comparison, with adjustable light a wide range of diverse dimming,
dimming of high precision, check the current status LED (such as the current brightness, power intensity,
the minimum support brightness, address, etc.), easy distributed control and so on.
Working temperature: -20~60°C
Supply voltage: DC12V to DC 24V
Dimming signal: According to DALI standaed V0(IEC60929) signal
Output: 1 channel (the same voltage and supply voltage)
Dimming range: 0.1%-100%
External dimension: L120mm x W65mm x H30mm.
Packing size: L123mm x W88mm x H42mm
Gross weight: 164g
Net weight: 116g
Connection mode: Spring-free screw-type wring , terminal block 2.6mm diameter
Output current: <4A
Output power: 12V:<48W , 24V:<96W
IP Rating: IP20
Package Included:
1 Piece of LED Lighting DALI Control Dimmer
1 Piece of User's Manual
CE and RoHS approved
