Details

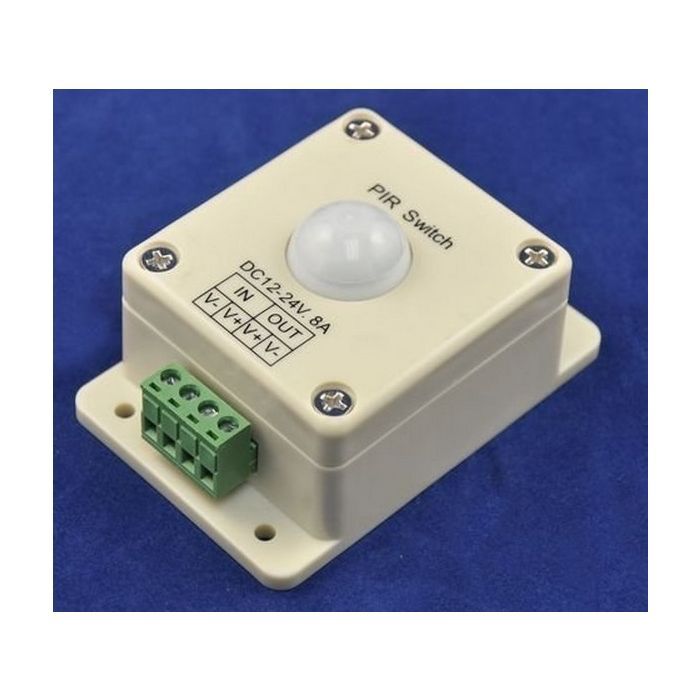

LED Motion Sensor On/Off 8A (Surface Mount)
This is a motion sensor to turn on/off flexible LED strips or other 12v or 24v devices!
This is a inexpensive surface mount detector that will turn your lights on when motion is detected and keep them on until about 10 seconds after it stops seeing motion.
This Motion Sensing On/Off LED Switch is the perfect solution to light up any 12 or 24V DC LED product. Thanks to its motion sensor,
it detect any object/person moving on a 120º radius from the detector sphere. This is a great product to be installed where a constant light is not needed,
like hallways, pathways, warehouse basements etc.
Once activated, this On/off LED switch will stay on around 10 seconds.Connection is very simple as it has set down screw which will clamp the cables easily.
Note: there is no sensitivity adjustment on these so for small areas you may have to diffuse them to avoid false readings
Range approx 25ft
Detection Angle 120 degrees
Input: Screw terminals for easy connection to our male barrel plug or stripped power supply wires.
Output: Screw terminals for easy connection to our single color flexible LED strips or control cable.
Requires 12V DC input.~~If you use an 8A or 96W power supply, you can use this to control up to 50' of flex strip (This is based on the rated capacity.
You should be able to run longer lengths based on the actual capacity, but we don't guarantee it).
Suggested Uses |
Hallways note: there is no sensitivity adjustment on these so for small areas you may have to diffuse them |
---|---|
Led Color |
N/A |
Mounting Options |
Wall Mount |
Voltage |
DC 12v to 24V |
Wattage |
96W at 12V and 190W at 24V DC |
Number Of Chanels |
1 |
Product Size (L)x(W)x(H) |
(L) 3.5" x (W) 2.4" x (H) 1-3/4" in (L=89 x W=60 x H=44.5mm |
Package Included:
1 Piece of LED Light Dimmer Controller
1 Piece of User's Manual
CE and RoHS approved
