Basic Features:
Automatically adapts input voltage DC12V-48V(CC)
Input standard DMX512 signal; 3-digital-display shows DMX address.
4 channels output; 4096 grey scales each channel; logarithmic dimming; lamplight soft & stablewithout strobe flash.
Support master mode or slave mode;
8 color changing modes and 10 speed scales in master mode .
Indicator of the DMX512 signal receiving status.
Power loss memory function.
Over current protection and short circuit protection.Wrong wiring protection at DMX prot.
Multiple DMX512 signal interface.
Specifications:
Product Model:BC-854-CC
Input voltage:DC12V-DC48V
Max load current:350mA/load X4 or 700mA/load X4
Max output power:1-12pcs 1W LED or 1-12pcs 3W LED
Grey Scale:4096 levels×4
Input Signal:DMX512/1990
Output Signal:Constant Current PWM×4
Decode Channel:4 CH
DMX512 socket:XLR-3R port/ RJ45 port/ terminal block
Dimension:L157×W65×H40(mm)
Weight (G.W):450g
Package Content:

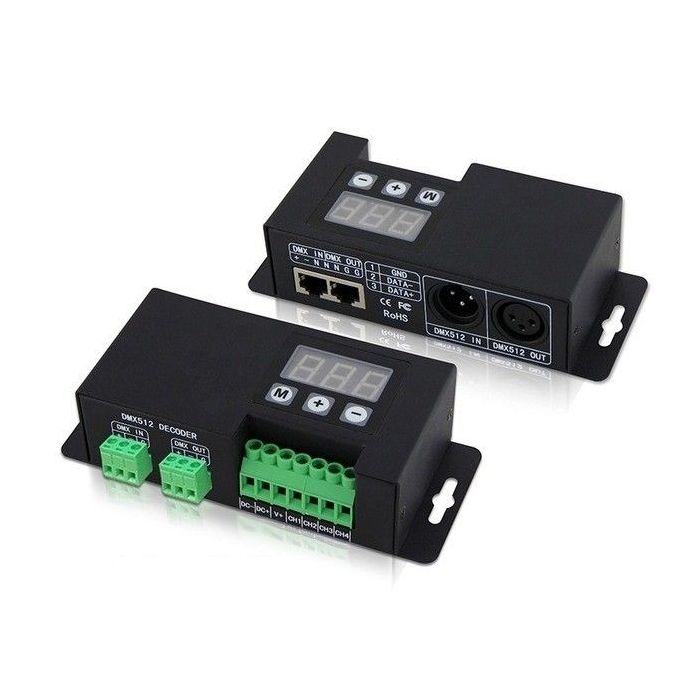

1 Piece of Bincolor Led Controller BC-854-CC 4CH DMX512 Decoder 3-digital-display Signal Driver
1 Piece of User's manual
CE and RoHS approved
