Specification
BC-809-CC 350mA
Feature function
1.Wide voltage input:DC12V-48V.
2.3 Output Channels, connect single/RGB color LED lamps.
3.0-100% brightness adjusting, 256 levels of grey scale per channel.
4.Standard DMX512 input protocol,set address with dip-switch.
5.10 testing modes,8 levels of changing speed.
6.350mA constant current output.
Product parameter
Product Model:BC-809-350
Input voltage:DC12V-48V
Max load current:350MA/CH*3
Driving LEDs:1-12pcs 1W LED
Grey Scale:256 levels/CH*3
Input signal:DMX512/1990
Output signal:3 Channels CC PWM
Decoder channels:3Ch or 4Ch (4th CH is shutter strobe)
DMX512 socket:StandardXLR-3R，RJ45 port
Product Dimension:L125*W52*H40(mm)
Weight (G.W):45g
BC-809-CC 700mA
Feature function:
1.3 Output Channels,connect single/RGB color LED lamps.
2.0-100% brightness adjusting,256 levels of grey scale per channel.
3.Standard DMX512 input protocol,set address with dip-switch.
4.Wide voltage input: DC12V-48V.
5.10 testing modes,8 levels of changing speed.
6.700mA constant current output.
Product parameter
Product Model:BC-809-700
Input voltage:DC12V-48V
Max load curren:700MA/CH*3
Driving LEDs :1-12pcs 3W LED
Grey Scale:256 levels/CH*3
Input signal:DMX512/1990
Output signal:3 Channels CC PWM
Decoder channels:3Ch or 4Ch (4th CH is shutter strobe)
DMX512 socket:StandardXLR-3R，RJ45 port
Product Dimension:L125*W52*H40(mm)
Weight (G.W):345g
Package Content:

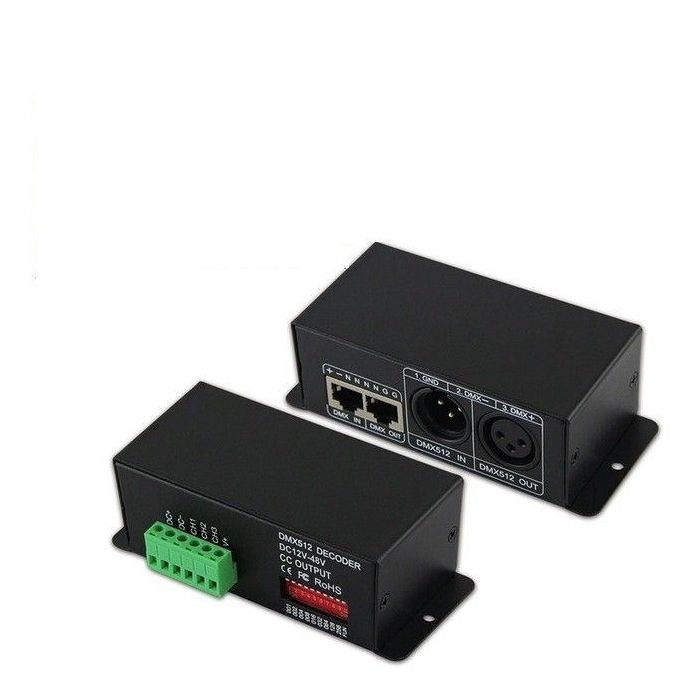

1 Piece of BC-809-CC Bincolor Led Controller LED 3CH DMX512 Decoder
1 Piece of User's manual
Bincolor_Controller_BC_809_CC_350mA_7
CE and RoHS approved
