Wide compatibility
Can be controlled by Arduino, Raspberry Pi, Fadecandy, K1000C, SP105E, SP107E, SP110E etc.

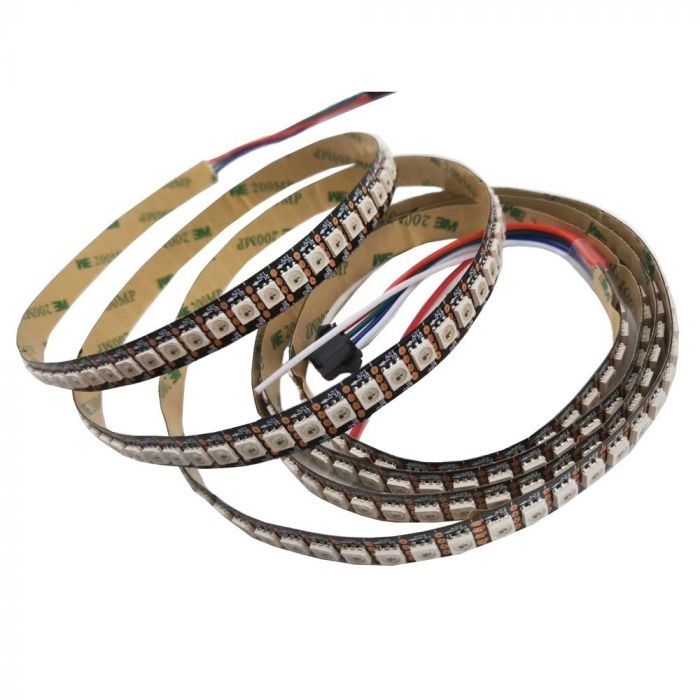

12V WS2812B LED Strip
WS2815 LED strip is upgraded version of 5V WS2812B LED strip. For 5M LED strip, even if all the LEDs are turned
on full white, 12V version has no voltage drop. You don't need to inject power as frequently as 5V version.
Individually addressable
Each pixel can have its own color and brightness. You can control it individually and set them to any color or animation
you want. 256 brightness display and 24-bit color display.
Dual-signal wires
WS2815 LED strip is Similar like the version of 5V WS2813 LED strip, Designed with one data wire and one backup data wire.
Signal break-point continuous transmission. If one LED is damaged, the following LEDs can still work.
Easy installation
Self-adhesive tape on back FOR IP30/IP65, it can be fixed on any dry and flat surface without any screws and clips. Each LED
can be cut off at cutting line.
There are 4-pin JST SM connectors and separated power/ground wires on both ends, which make it easy to hook up each other
and wire up for power.
Specifications
IC type :WS2815 IC
Gray level: 256
View angle: 120°
Input voltage: DC12V
Color: full color 24-bit
FPCB board color: Pls Choose Black Background or white Background
Power: 0.3W/LED 144 LEDs/m
Model: WS2815 strip 5050rgb chips
Storage Temperature:-30-+95 °C
Operating Temperature:-20 ~ +85°C
Led Qty: 144pcs RGB SMD 5050 per meter
The distance between two LEDs:144Leds/m -- 1.92mm
Wave length(nm):Red,650nm ; Green,520nm ; Blue,460nm
Waterproof level: Pls Choose Non- waterproof or IP65 waterproof or IP67 waterproof
Note
Power adapter and controller are not included!
It is forbidden to light up for a long time when the strip is in the spool.
Protection Rate: Pls Choose,
IP30 Non-Waterproof with 3M Tape on the back,
IP65 Waterproof Dripping Glue with 3M Tape on the back,
IP67 Waterproof Outer Casing Silicone without 3M Tape on the Back
Package Content:
1 Roll of 1 Meter (3.28Feet) WS2815 IC RGB 144LEDs Led Strip
CE and RoHS approved
