Features:
1.High voltage CMOS process, 12V single point single control
2.Provide output channel current misalignment that can reduce electromagnetic interference and power clutter.
3.Default power-on does not light
4.The chip has power-on protection and power-down protection features to enhance the life of the chip.
5.provides SOP8 package type, working environment is between -40 °C to +85 °C.
6.Every LED individually and you could set them to any color or animation you want.
7.It comes with self-adhesive 3M tape on its back, so you can fix it on any dry and flat surface without any screws and clips.
8.It comes with 3-pin JST SM connectors on both ends and separated power/ground wires on output side ,
which makes it easy to hook up each other and wire up for power.
Specifications:

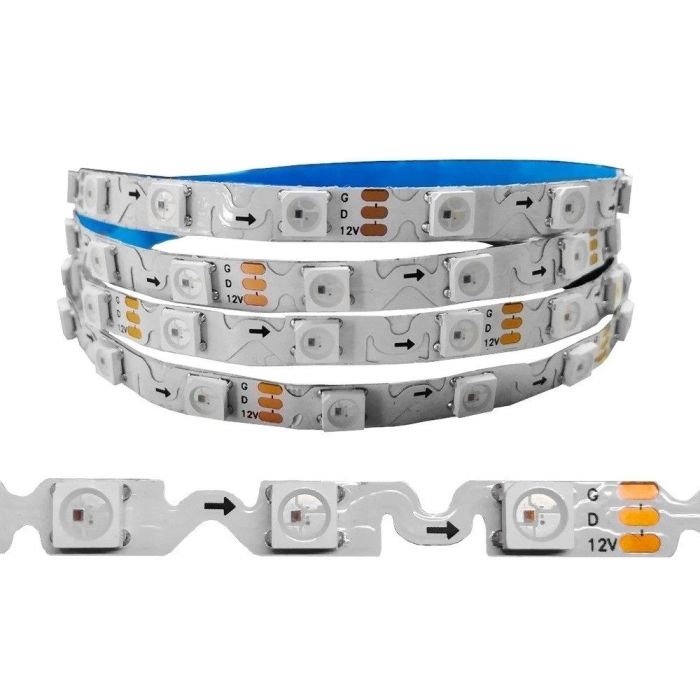

IC type:WS2811 for 12v led strip,it is similar like WS2812b,but ws2812b is only for 5v version
LED type:SMD 3535
Gray level: 256
View angle: 120°
Input voltage: DC12V
Color: full color 24-bit
FPCB board color: White
Power:18W/m 0.3W/LED 60LEDs/m
Recommended power supply:DC12V 2A
Standard Reel Length:1m/pcs
Model: S LED STRIP
Storage Temperature:-55-+150 °C
Operating Temperature:-40 ~ +85°C
Led Qty: 60leds
The distance between two LEDs:11.40 mm
Length xWidthx Height:1000mmx6mmx2mm
Wave length(nm):Red,620-650nm ; Green,520-525nm ; Blue,465-470nm
Waterproof level: IP30 no waterproof
Package Includes:
1 x 1m RGB IP30 led strip
1 x 3pin connector
Note:
Power adapter and controller are not included on the package!
It is forbidden to light up for a long time when the light is in the spool.
CE and RoHS approved
