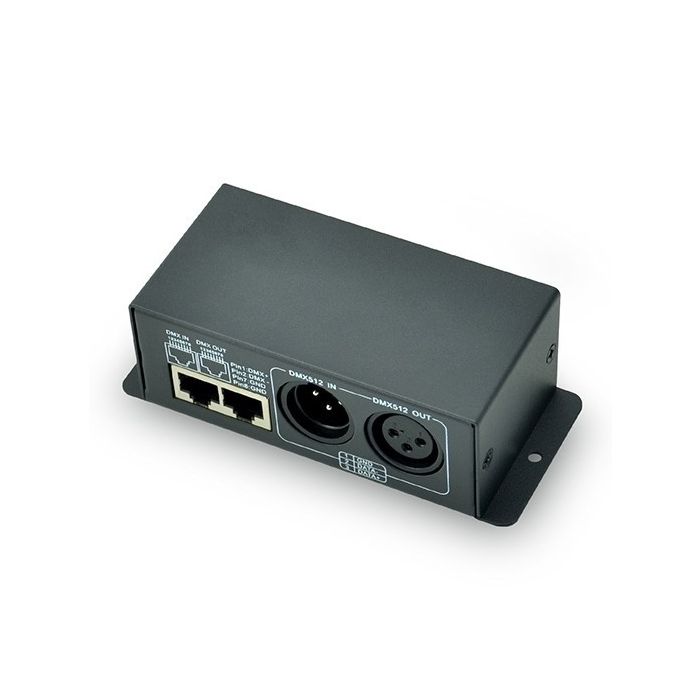

12V 24V DC Constant Voltage Euchips LED DMX Decoder PX24505
Summary
Welcome to use PX series DMX512/RDM decoder & driver. PX series adopt the advanced
micro-computer control technology and converted the DMX512,RDM/2009 digital signal widely
used in international to the PWM control signal. 1~4 channels output for option and each channel able to achieve 256 gradations of controlling, and also it
can be used as the connector of PC digital light controller and analog light modulator. It is
mainly used for the controlling of buildings & lights applied LED.
Product Features
Meets DMX512/1990,RDM /2009 protocol
Supported RDM parameters:
DISC_UNIQUE_BRANCH
DISC_MUTE
DISC_UN_MUTE
DEVICE_INFO
SOFTWARE_VERSION_LABEL
DMX512/RDM_START_ADDRESS
IDENTIFY_DEVICE
MANUFACTURER_LABEL
SUPPORTED_PARAMETERS

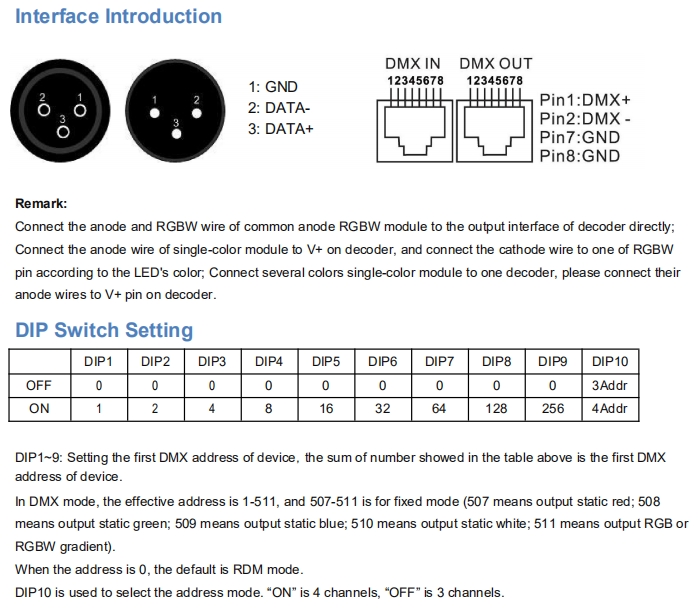

In DMX mode set the DMX address manually by switch; in RDM mode, the host computer address allocation
3 or 4 Channels optional by DIP switch 10
Constant voltage output, the maximum current of 6A /ch for RGBW decoder and 8A/ch for RGB decoder

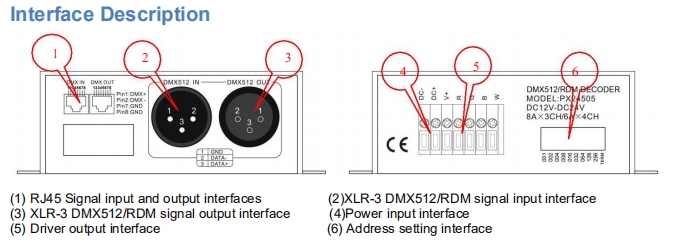

European terminals for input/output ports& RJ45 and XLR-3 Interface for DMX512/RDM signal ports
256 grade brightness adjustment
Package Include:
1 Piece of 12V 24V DC Constant Voltage Euchips LED DMX Decoder PX24505
1 Piece of Product's Manual
CE and RoHS approved
